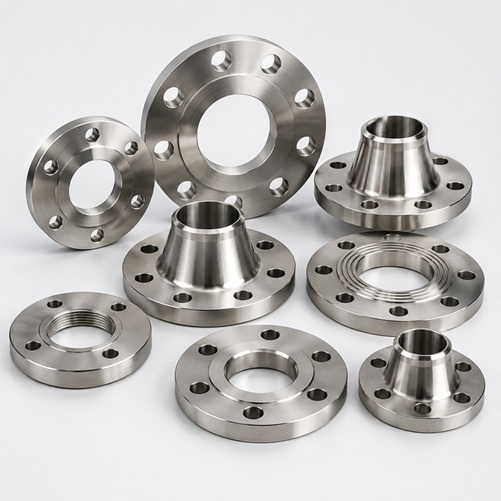

Simplex Metal no need an introduction in the field of Flanges Manufacturing and supplying. We manufacture these flanges in various types, shapes, sizes, dimensions, forms, and material grades. With the use of high-quality raw materials and advanced manufacturing practices, we manufacture these flanges as per client requirements.
A Flange is one of the best piping equipment that used for connecting pipes, valves, pumps, and other equipment to make the piping system. Using flanges help to get easy access for cleaning, modification, and inspection. There are different methods that used to join two flanges with pipes like bolting and welding, etc.
Based on the joining methods, they into different types including Slip-On Flanges, Orifice Flanges, Spectacle Flanges, Lap Joint Flanges, Raised Face Flanges, Ring Joint Flanges, Weld Neck Flanges and Socket Weld Flanges, etc. All these types are manufactured with diverse material grades like Duplex Steel, Super Duplex Steel, Hastelloy, Monel, Inconel, Nickel, Carbon Steel, Alloy Steel, Stainless Steel Flanges, Cupronickel Flanges and more.
Moreover, Flanges are highly demanded in several industries notably heat exchangers, boiler industries, oil & gas refineries, and petroleum industries, etc.
| Size | 6 NB to 2400 NB |
| Class | 150#, 300#, 400#, 600#, 900#, 1500#, 2500#, 3000#. Also as per the National & International Standard. |
| Standard | SORF, SOFF, SOLJ, SWFF, WNRF, WNFF, WNRTJ, LWNRF, BLRF, BLFF, BLRTJ, SWRF, LAP Joint, Threaded, Reducing, Spectacle, Orifice & Studding Outlet are manufactured according to ANSI B 16.5, B 16.47 Series A (MSS SP-44), B 16.47 Series B (API 605), MSS SP-43, DIN 2527, DIN 2566, DIN 2576, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2642, BS 10, IS 1538 & IS 6392, JIS Flanges etc. |
| Types of Flanges | Weld neck Flanges (WNRF), Slip-on Flanges (SORF), Blind Flanges (BLRF), Lap Joint Flanges, (SOLJ), Socket-weld Flanges (SWRF), Screwed (Threaded) Flanges, Long weld neck Flanges (LWNRF), Spectacle Blind Flanges, Spacer & Blind Flanges, Ring Type Joint Flanges (RTJ), Reducing Flanges, Raised Face (RF) Flanges, Orifice Flanges, Deck Flange, Large Diameter Flanges, Custom Flanges, Drawing Flanges, Forged Flanges, Plate Flanges, Flat Face Flanges, etc. |
| Flange Dimension Standard | ANSI B16.5 (150# to 2500#), ANSI B16.47 (Series A/B, 75# to 900#), EN 1092-1 (PN 6, 10, 16, 25, 40), DIN Standard, UNI Standard, API 6A Standard, BS 10 (Table A, D, E, F, H, J, K, R, S, T), JIS B2220 (5K, 10K, 16K, 20K, 30K), MSS SP-44 Standard, AS 2129 (Table A, D, E, F, H, J, K, R, S, T), IS 6392 Standard. |
| Form | Slip-On Flange (SO), Blind Flange (BL), Lap Joint Flange (LF), Socketweld Flange (SW), Weld Neck Flange (WN), Long Weld Neck Flange (LWN), Ring Type Joint (RTJ), Threaded Flange, Customized Flange with Raised Face (RF), Flat Face (FF). |
| Standards | ASTM A182 |
| Grade | F201, F202, F301, F302, F304, F304L, F309, F310, F316, F316L, F316LN, F317L, F321, F347, 405, 409, 410, 420, 430, 440C, F904L |
| Standards | ASTM A105, ASTM A350 |
| Grades | Gr. LF2, LF3, ASTM A694 -F42, F46, F48, F50, F52, F56, F60, F65, F70. |
| Standards | ASTM A182 / ASME SA182 |
| Grades | F1, F5, F9, F11, F12, F22, F91 |
| Standards | ASTM / ASME SB 61 / 62 / 151 / 152 |
| Grades | Copper Nickel 90 / 10, Copper Nickel 90 / 10 |
| Standards | ASTM A182 |
| Grade | 2205 (F51, S31803 / F60, S32205), SMO254 (F44, S32154), 2507 (F53, S32750 / F55, S32760), Ferralium 255 (F61, S32550). |
| Standards | ASTM B564 / B182 |
| Grade | 200 (N02200), 201 (N02201), Alloy 20 (N08020). |
| Standards | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Grade | Monel 400, Monel K500 |
| Standards | ASTM B564 / B408/ B425 / A182 |
| Grade | 600 (N06600), 601 (N06601), 625 (N06625), 718 (N07718), 800 (N08800), 800H (N08810), 800HT (N08811),825 (N08825), F904L (N08904). |
| Standards | ASTM B564 / B572 |
| Grade | C726 (N10276), C4 (N06455), C22 (N06022), C2000 (N06200), X (N06002), B2 (N10665), B3 (N10675). |
| Standards | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standards | IS 2062,ANSI B16.5,IS 2002,ANSI B16.5 |
| Standards | ASTM B381 |
| Grade | F2, F5 (Ti6AI4V), F7. |
